Focusing on the fields of motion control and machine vision products and technologies, and integrating these two core resources into products and system solutions that meet the needs of intelligent manufacturing and industrial IoT development, making them an important development support for industry users.

Independent Bus Master Controller

Open Bus Master Control

Bus Direct Drive

Bus High-Speed IO

Bus High Speed Trigger Module

DIP

Desktop intelligent scanner

Box Type Intelligent Scanning and Recording System

Vertical Intelligent Scanning and Recording Machine

Customized Recording System

MVP

PCIe-M58 / PCIe-M54

PCIe-8332/PCIe-8334/PCIe-8338

SuperCAT

PCI/cPCI-7432/7433/7434

PCIe-GIE74V

Featured motion control algorithm

Diversity speed planning

T-shaped

SinCos curve

S-type (3rd/5th order)

Forward looking speed planning

01
Characteristic interpolation

Archimedes spiral

Spline/polynomial curve interpolation

02
Active Vibration Suppression (AVC)

Reduce mechanical resonance and vibration

03
ZTT

Three axis dynamic plane adjustment

Support XYZ interpolation motion with Z-axis as the main axis

04
Space coordinates&2D compensation

Accurate interpolation of arbitrary planar trajectories

Support accuracy calibration and compensation in multiple modes

05
Torque Control

Targeting advanced packaging bonding

Accurate real-time control of up to 5 grams can be achieved for a pressure of 15 grams

06
High speed portal motion

Support multi axis PVT motion

Convenient to set door motion parameters and adaptively debug door motion parameters

07
Position triggering and locking

High triggering accuracy, supporting high-speed continuous aerial photography with sub micron precision

Instantly synchronize and record the positions of each axis

08
EAG

High level gantry control of flexible gantry

Reduce the dynamic tracking error between the master and slave axes, and minimize the impact of high acceleration and deceleration motion of the crossbeam axis on the gantry

09
EasyRealTime

Real time encapsulation of client program logic

Shortening the motion logic cycle and improving UPH can generally result in a 15% to 50% increase in system CT1

10
Multiple main control ports

Supports up to 4 channels

Flexible grouping and configuration of different axes or IO according to different application scenarios and control cycle requirements

11

Innovation builds the foundation and puts users first in terms of functionality

The basic framework of innovation

Based on the open EtherCAT bus architecture

RTOS independent of Windows

Based on an independent X86 CPU physical core

Keep the Windows development environment

High speed shared memory for integrated motion vision

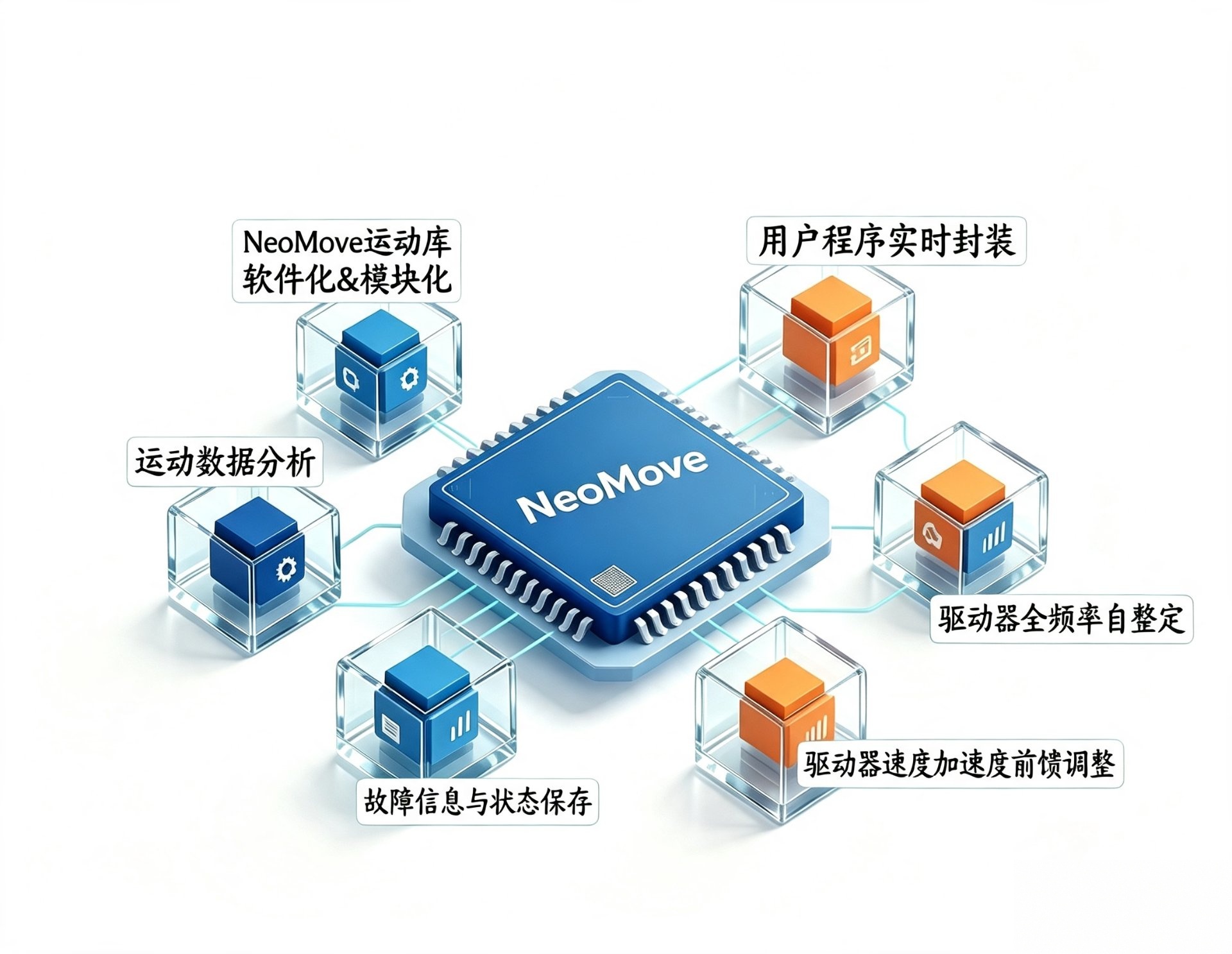

User oriented basic functions

NeoMove motion library software and modularization

Real time encapsulation of user programs

Sports data analysis

Fault information and status preservation

Drive full frequency self-tuning

Driver speed acceleration feedforward adjustment

Crafted with ingenuity, comprehensively analyze core products

Iterative cultivation and sedimentation of brand development history

2022

E2-M300 series

EtherCAT Bus Controller&Open, X86+INtime+Windows
2024

E3-S series

EtherCAT bus high-speed IO module
2026

E2-M100 series

EtherCAT Bus Controller&Independent, X86+INtime

E3-STR series

EtherCAT bus high-speed trigger module for aerial photography

NDSL series

EtherCAT bus direct drive
2027

E3-M100 series

EtherCAT Bus Controller&Independent, X86+LinuxRT

E3-M300 series

EtherCAT Bus Controller&Open, X86+LinuxRT+Linux
2028

E4-M100 series

EtherCAT Bus Controller&Independent, ARM+LinuxRT

E4-M300 series

EtherCAT Bus Controller&Open, X86+INtime+Windows
2029

E5-M100 series

EtherCAT Bus Controller&Independent, X86+INtime

E5-M300 series

EtherCAT Bus Controller&Open, X86+INtime+Windows
